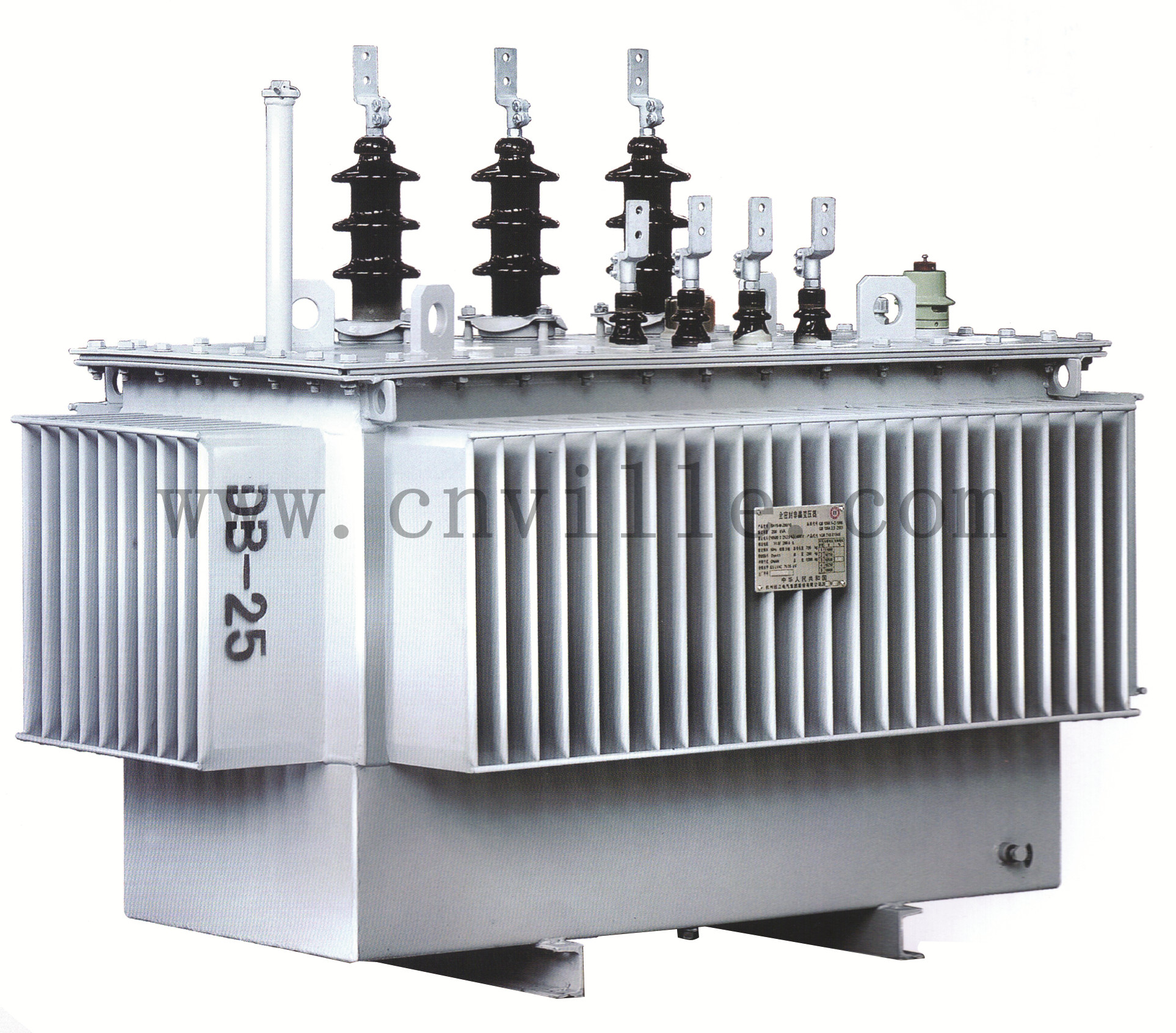

1500kVA 13200V/400/230VAC Pad Mount Transformer
basic information
| Model | 1500/13.2/0.4 | cooling method | oil-immersed transformer |
| Winding Type | double winding transformer | certification | ISO9001-2000,ISO9001,CCC,Kema Ce |
| Usage | combination transformer, power transformer, distribution transformer | frequency characteristics | power frequency |
| the shape of the core | U | impedance | 4 ~ 8% or customized |
| Capacity | 1500kVA | Rated H. V. | 13.2kv |
| rated L. V. | 0.4kv | insulation class | IEC standard |
| Reference Standard | IEC standard | transport packaging | wooden pallet |
| Specifications | up to 25MVA | China | |
| HS Code | 85042200 | production capacity | 4000 unit/year |
Packaging and Delivery
| Packing size | 4.00cm * 2.50cm |
| package gross weight | 2000.000kg |
Product Description
Pad Mount Transformer 1500KVA 13200V/400/230VAC Aluminum/Copper Winding
pad transformer description:
The pad-type transformer is composed of transformer body, oil-immersed load switch, protection fuse and high and low voltage wiring. It is placed in the sealed oil tank and equipped with a full series of operation monitoring instruments such as pressure gauge, oil level gauge and oil temperature gauge. And combined with low-voltage switchgear combination as a set of booster equipment.
Transformer Test Report
1. KEMA Oil-immersed Transformer Test Report
2. Oil-immersed transformer CE test report.
3. CNCE test report of oil-immersed transformer.
4. CEST test report of oil-immersed transformer.
5. CTQC test report of oil-immersed transformer.
6. CNAS test report of oil-immersed transformer.
Transformer characteristics
transformer core
1. The iron core is made of high-quality grain-oriented cold-rolled silicon steel with high magnetic permeability, which is laminated by 45 ° five-step full-tilt lamination. Therefore, no-load loss and no-load current are effectively reduced.
transformer winding
LV winding
1. The low-voltage winding is made of high-quality foil conductor or copper wire, with balanced ampere turns, low additional loss, and improved short-circuit resistance.
2. The oil drain aer for heat dissipation is scientifically used for windings, and the surface for heat dissipation is increased, so the temperature is reduced and the overload capacity is improved.
high voltage winding
high voltage winding is made of high quality copper wire and excellent design structure. It improves the distribution of the electric field. Through the analysis of lightning pulse, the ability to resist lightning pulse is improved.
