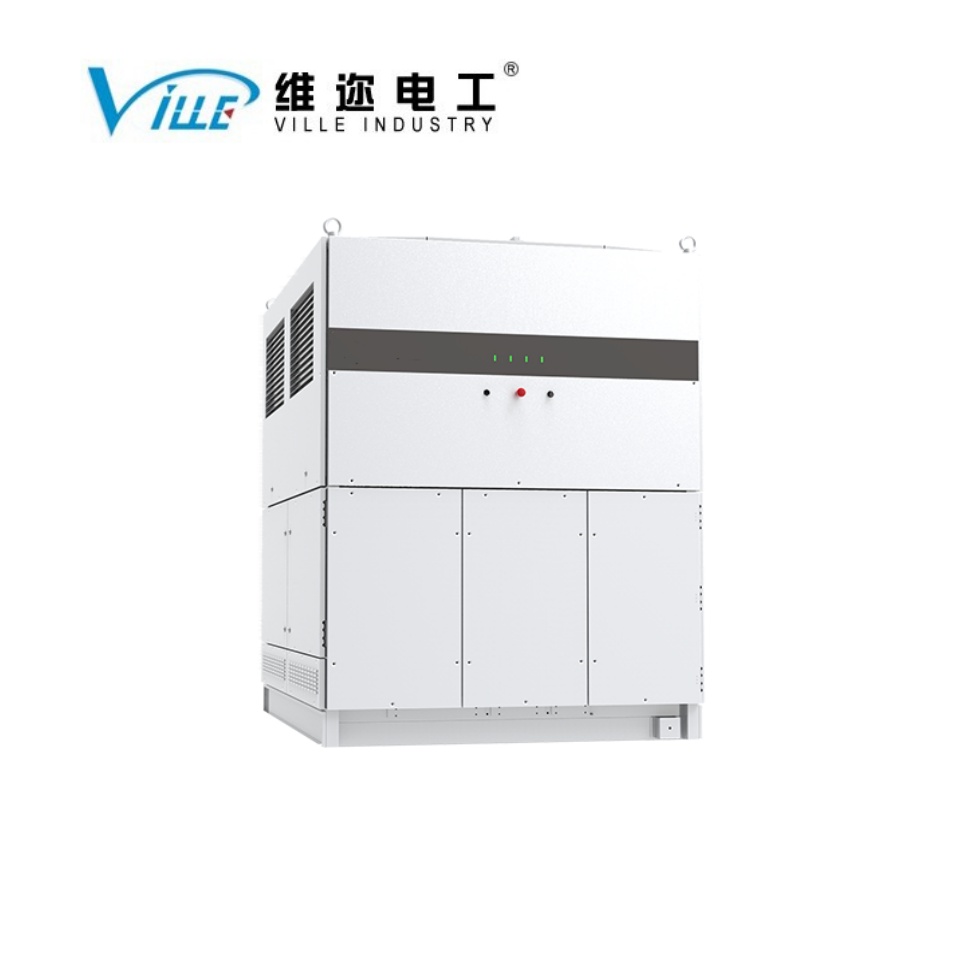

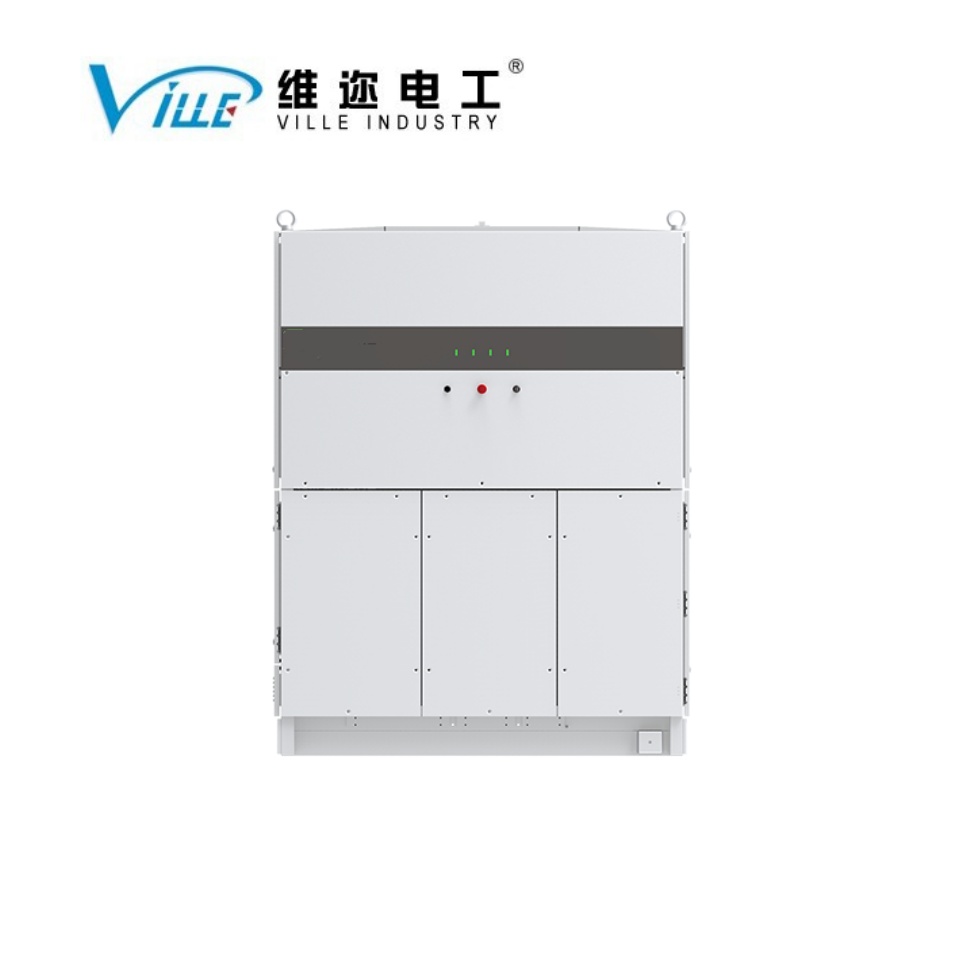

EP-4400-HA-UD
EP Series 1500V Outdoor Central Inverter
Central Inverter EP-4400-HA-UD EP Series 1500V Outdoor Central Inverter
Utility-Scale PV Solutions
VILLE offers string inverter, central inverter and MV turnkey stations for utility-scale applications. With technical innovations and expertise in the field, We prioritizes enhancing product performance, efficiency, reliability, and safety. The company's primary goal is to make renewable energy accessible and cost-effective.
Central Inverter
EP-4400-HA-UD
EP Series 1500V Outdoor Central Inverter
INPUT(AC)
Model EP-4400-HA-UD
Max. PV input voltage 1500V
Max. input current 5736A
MPPT voltage range for nominal power 900~1300V
Number of MPPT trackers 4
Number of DC inputs 20( Maximum: 32 inputs)
OUTPUT(DC)
| Model | EP-4400-HA-UD |
|---|---|
| AC output power | 4400kW@45℃/5060kW@25℃ |
| Rated grid voltage | 630V |
| Grid voltage range | 536~693 V |
| Max Output current | 4640A |
| Rated grid frequency/range | 50Hz±5Hz, 60Hz±5Hz |
| Output current harmonic (at nominal power) | <3% |
| DC current injection | ＜0.5%In |
| Power factor at nominal power/range | >0.99/0.8 lagging to 0.8 leading |
PROTECTION:
DC input protection Load break switch+fuse
AC output protection Circuit breaker
Over-voltage protection
DC Type II/AC Type II
Leakage current monitoring Yes
Ground fault monitoring Yes
Grid monitoring Yes
Insulation monitoring Yes
Overheat protection Yes
Night SVG function Optional
Anti-PID function Optional
GENERAL DATA
Model EP-4400-HA-UD
Self-consuming at runtime ＜5500W
Self-consuming in standby ＜300W
Protection level IP65
Temperature -30℃~+60℃
Cooling method Temperature controlled forced air cooling
Max.operating altitude 5000m
Display Standard: LED indicator, Bluetooth+APP; Optional: Touch screen
Communication port RS485/Ethernet
Certificates and approvals (more available on request) CE,IEC 62109, IEC 61727, IEC 61683, IEC 62116, IEC 60068, IEC 61000
Dimensions (W×H×D) 2210×2250×1850mm
Weight 3300kg
