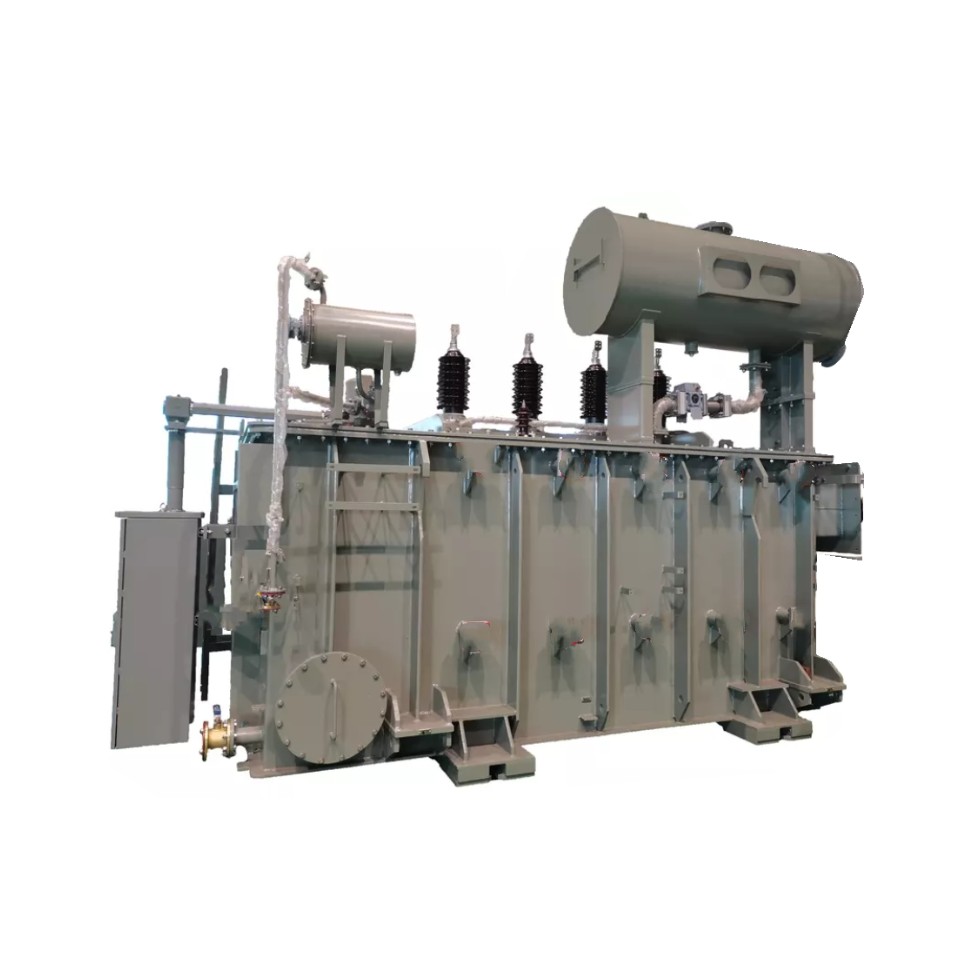

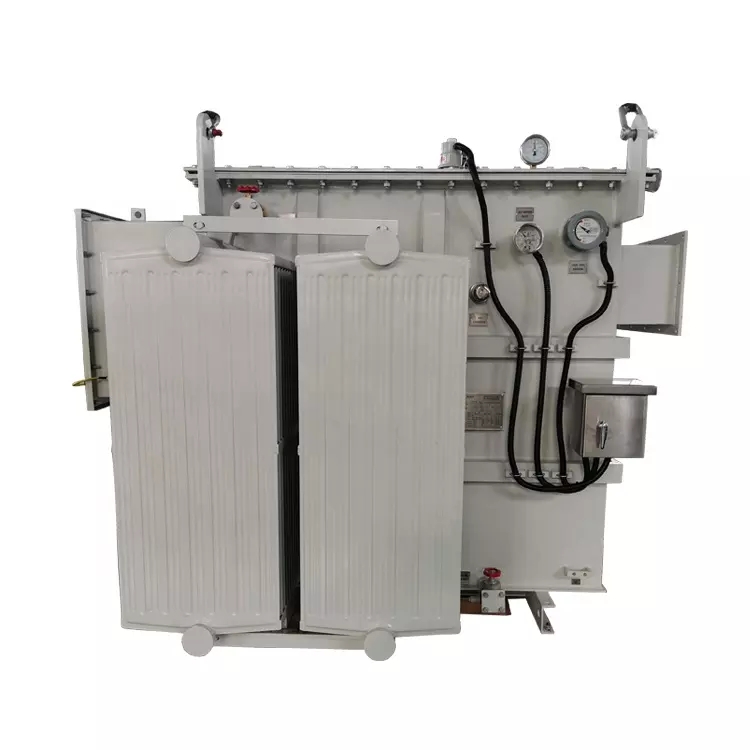

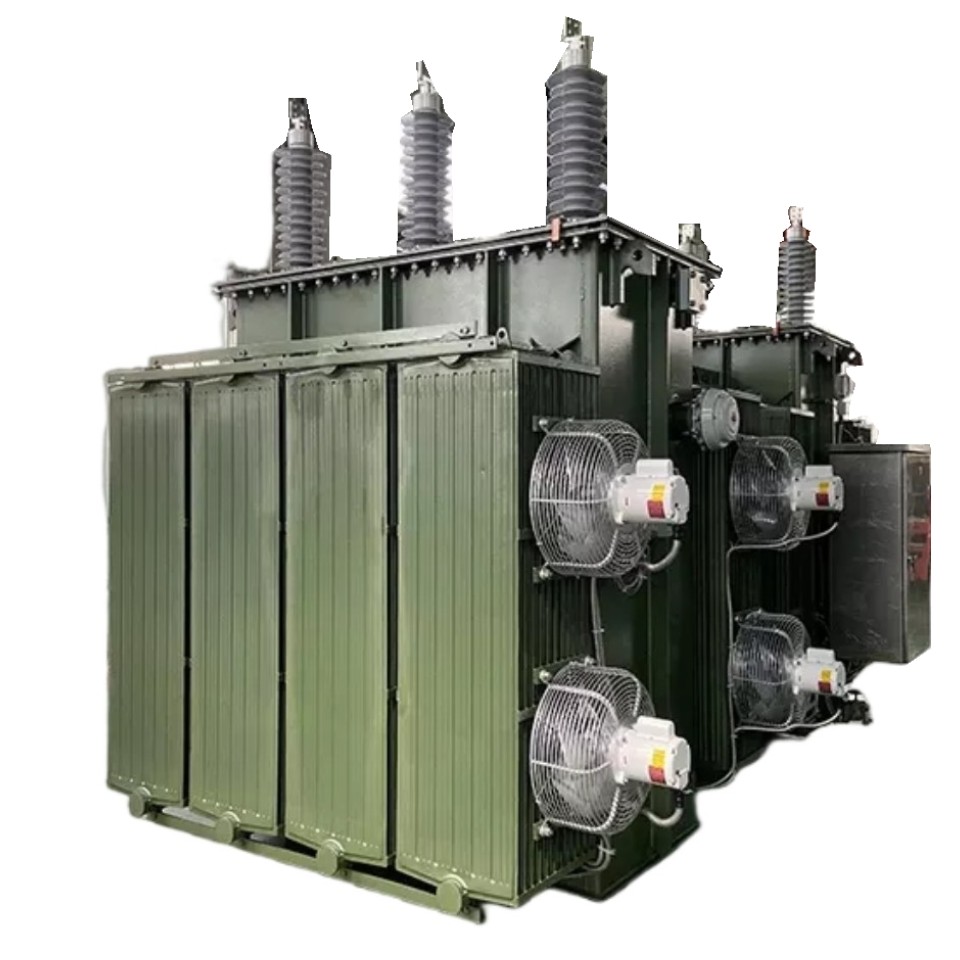

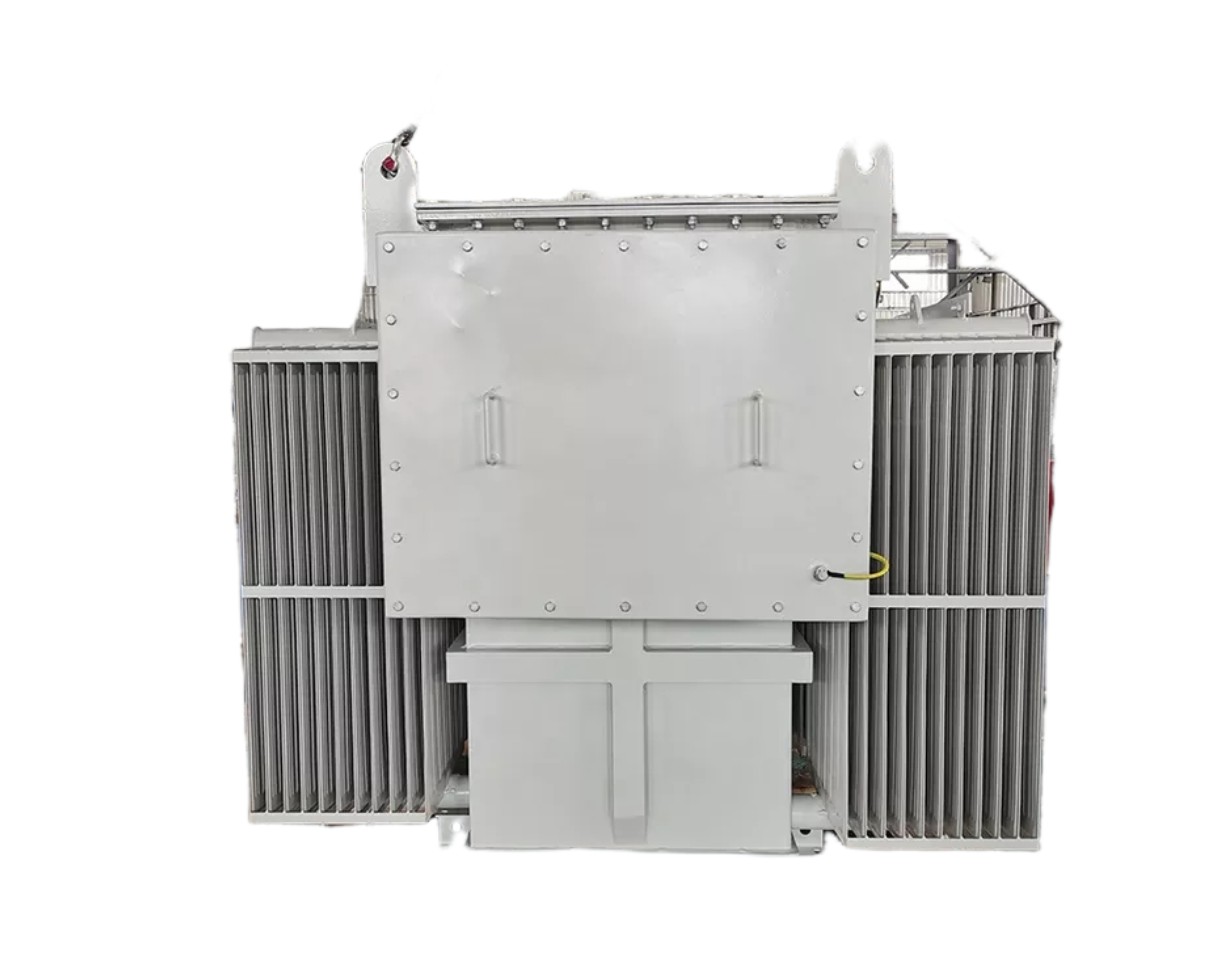

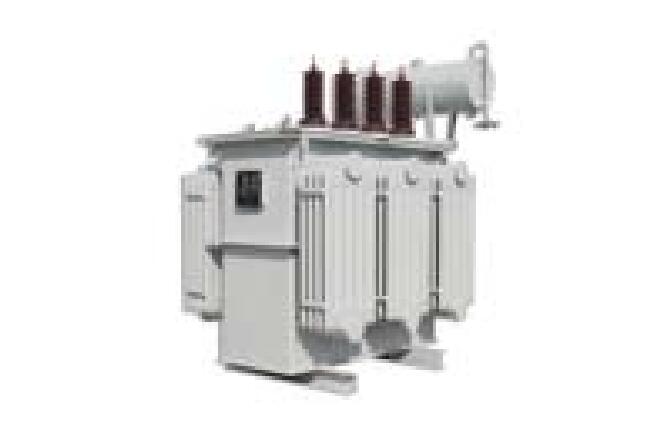

Three Phase oil immersed Earthing Grounding Transformer with conservator
100kva
20kv /0.4kv
HV&LV winding material: Copper
100kva
20kv /0.4kv
HV&LV winding material: Copper
Three Phase oil immersed Earthing Transformer with conservator
Product Details
Product Description
Grounding Transformers are designed to provide an artificial, neutral point for ungrounded three phase power systems.
During the line-to-ground faults, grounding transformers provide an easy path to ground faults, thus limit the fault currents and transient over-voltages.
Grounding transformers normally carry short-circuit ground current until the circuit breaker clears the fault. Therefore, they have short time ratings.
The kVA rating of a earthing transformer depends on the normal line-to-neutral voltage and the fault current value for a specified time, such as seconds to minutes.
Voltage | Up to 22kV |
Operating Voltage | 20kV |
Standard | IEC 60076-6 or Equivalent |
Rated Neutral current | |
Power rating | 100kVA |
Voltage Rating HV/LV | 20/0.4kV |
Cooling methods | ONAN |
Frequency | 50 Hz |
Installation | Outdoor |
Zero sequence impedance | 19 Ohm |
No phase | 3 |
Voltage regulation range (No of Taps) | 5 |
Temperature rise for the windings | As per IEC standard |
Winding material | Copper |
Insulation level | According to the rated voltage (IEC70076-3) |
Impedance Voltage | 5.5 % |
Ambient temperature | -40 to +40 °C, other temperatures on request |
Vector group | ZNyn11 |
Voltage regulation Range (No.of Taps) | 5 |
Bushing | porcelain |
Creepage | 31mm/kV |
Breather | Silica gel |
Please take a brief moment and use the "Check List" below to gather the following (13) basic pieces of Grounding Transformer information:
- Winding configuration; either Zig Zag or Two Winding.
- Voltage(s) and BIL; The line-to-line value of the system to which the grounding transformer is to be connected. If a two winding grounding transformer is required, the secondary voltage must be provided as well.
- Continuous neutral current.
- System available neutral fault current and duration; example 500 amps for 10 seconds, 4000 amps for 2 seconds.
- Zero Sequence impedance percentage.
- Per phase impedance in Ohms.
- Per phase resistance in Ohms.
- X/R ratio; typically a value > 4.0.
- Special application conditions; i.e. 2000 MASL, etc.
- Enclosure construction or NEMA designation preference; i.e. high security compartmentalized padmounted, standard ventilated or substation design, special paint color, etc.
- Terminal connectivity preference; i.e. dead front, live front, conventional terminals, etc.
- Winding material; CU if not specified.
- Transformer temperature rise; 150° C if not specified.
