Model NO.: S-8000/69KV/25kv

Cooling Method: Oil-immersed Type Transformer

Winding Type: Multi-winding Transformer

Certification: ISO9001-2000, ISO9001

Usage: Power Transformer

Frequency Characteristics: Power Frequency

Shape of Core: Ring

Brand: Ville

Power: Hydroelectric (Power) Station

Transport Package: The Accessories Packed in Plywood Cases,The Main B

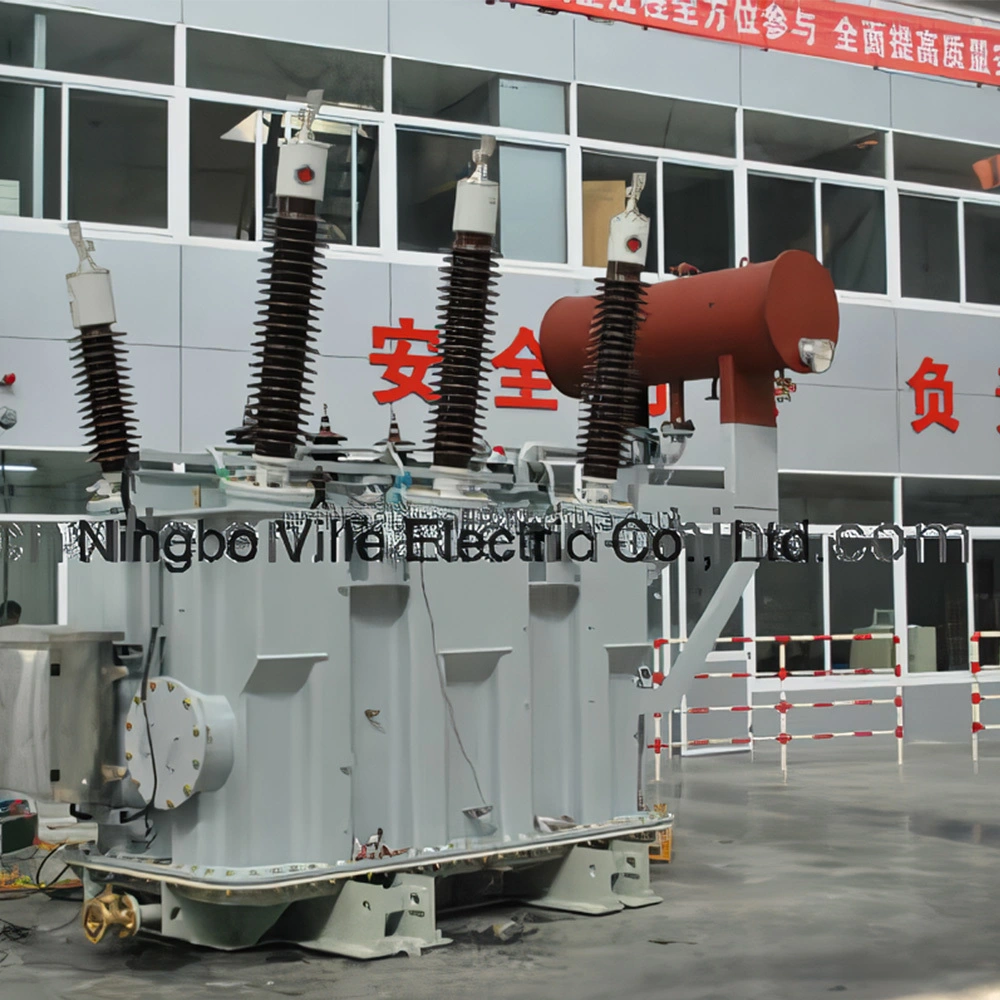

Power Transformer 66kv~69kv Transformer Power Transmission S-800069kv25kv

Back to product >>
Cooperation Consulting >>

Product Details



ONAN/ONAF Primary (HV) Rated Power/ (): MVA6/8
ONAN/ONAF Secondary (LV) Rated Power: / ()MVA6/8
Altitude of Installation: >= 3000 m. A. S. L.
Number of Phases: 3
Rated Frecuency: Hz50
Type of Service: Outdoor - Continuous Service
Rated Primary (HV) Voltage: ()V69000
OFF CIRCUIT Primary Tapping Range: % Un± 2 x 2, 5%
Rated Secondary (LV) Voltage: ()V25000
OFF CIRCUIT SecondaryTapping Range: % Un/
Insulating Liquid: Mineral Transformer Oil - NO PCB

Connection Symbol: YNyn0
Connections: Primary: WYE with Neutral brought out
Secondary: WYE with Neutral brought out

2 (36)

10008_waifu2x_photo_noise2_scale (5)

10009_waifu2x_photo_noise2_scale (3)

tt
